Rubber Bumpers

All standard bumpers are manufactured using black, general purpose compounds. Other materials and colors are available with special order. For increased strength, all styles are available with a steel washer overmolded at the base of the recess. To order the reinforced design, add a “W” suffix to part number.

Rubber Bumpers are offered in a variety of different styles. Select from the options below:

Request a QuoteCall 1-800-528-3553

Specifications

Recess Rubber Bumpers

Part NumberHeightCountersink DiameterCountersink DepthInner DiameterOuter DiameterSecondary Outer DiameterSpec Sheet

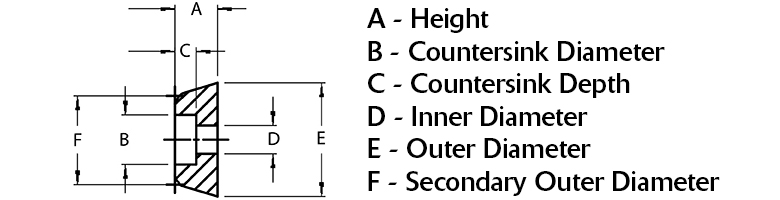

ABCDEF
512R(W)0.2660.250.1720.1250.75N/ADownload PDF
513R(W)0.50.3130.250.1560.6560.625Download PDF
704R(W)0.1870.2190.0940.1250.50.39Download PDF
7051R(W)0.250.2660.1560.1250.5N/ADownload PDF
705R(W)0.250.2340.1560.1250.5N/ADownload PDF
705R(W)0.250.2340.1560.1250.5N/ADownload PDF
706R(W)0.2810.250.1560.1250.531N/ADownload PDF
707R(W)0.3120.250.1250.1250.562N/ADownload PDF
711R(W)0.2660.250.1250.1250.75N/ADownload PDF
712R(W)0.250.250.1250.1250.75N/ADownload PDF
771R(W)0.250.3120.1250.1250.8120.75Download PDF
513R(W)0.50.3120.250.1560.6560.625Download PDF
715R(W)0.3440.2810.1870.1560.594N/ADownload PDF
719R(W)10.3750.250.1560.75N/ADownload PDF
727R(W)0.2810.2810.1250.1560.625N/ADownload PDF
733R(W)0.4060.2810.1250.1560.625N/ADownload PDF
733R(W)0.4060.2810.1250.1560.625N/ADownload PDF
755R(W)0.4060.3120.250.1560.75N/ADownload PDF
755R(W)0.4060.3120.250.1560.75N/ADownload PDF
781R(W)10.3750.250.1561N/ADownload PDF
516R(W)0.7810.3440.250.1720.7970.75Download PDF
747R(W)0.4690.3120.2190.1720.719N/ADownload PDF
115R(W)0.4060.3750.1870.1870.875N/ADownload PDF
116R(W)0.5310.3750.2810.1870.875N/ADownload PDF
718R(W)0.6250.3120.2810.1870.8750.75Download PDF
741R(W)0.4060.3120.1870.1870.719N/ADownload PDF
757R(W)0.5620.3750.3120.1870.7810.75Download PDF
775R(W)0.3440.3750.1870.1870.969N/ADownload PDF
777R(W)0.5310.3750.250.1871N/ADownload PDF
783R(W)0.8440.3750.4370.1871.062N/ADownload PDF
785R(W)0.6250.5620.3750.1871.031N/ADownload PDF
788R(W)1.750.3750.50.1871N/ADownload PDF
789R(W)0.870.380.240.211.03N/ADownload PDF
791R(W)0.750.750.3750.251.5N/ADownload PDF
795R(W)1.50.750.3750.251.5N/ADownload PDF
M80310.250.270.150.1250.5N/ADownload PDF
M80730.5550.3750.2950.150.75N/ADownload PDF

Mushroom Stem Rubber Bumpers

Part NumberOuter DiameterHeightStem HeightStem DiameterSpec Sheet

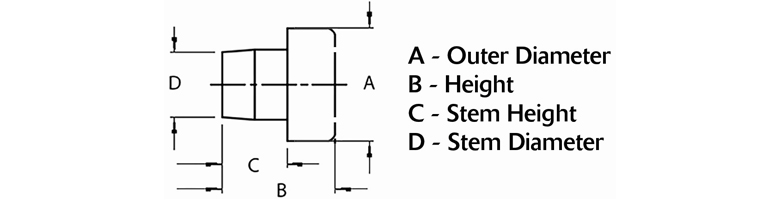

ABCD
422S0.2750.4370.250.275Download PDF
210M0.3120.3750.1870.187Download PDF
209M0.3440.3440.1870.187Download PDF
301S0.3750.4370.250.218Download PDF
423S0.4370.3750.4370.281Download PDF
611S0.4370.3120.1870.25Download PDF
299S0.50.3440.250.218Download PDF
421M0.50.4690.250.25Download PDF
656S0.50.1870.1050.405Download PDF
419S0.5620.3750.1870.25Download PDF
645S0.8120.5620.3120.39Download PDF
318M1.251.510.938Download PDF
M80390.250.350.250.155Download PDF
M80490.50.4680.3750.375Download PDF
M80500.50.4680.3750.375Download PDF
M80850.4680.8120.530.39Download PDF
M80910.750.7450.4250.375Download PDF

Plug Rubber Bumpers

Part NumberSlot Outer DiameterSlot HeightStem DiameterStem HeightBase DiameterHeightBase HeightSpec Sheet

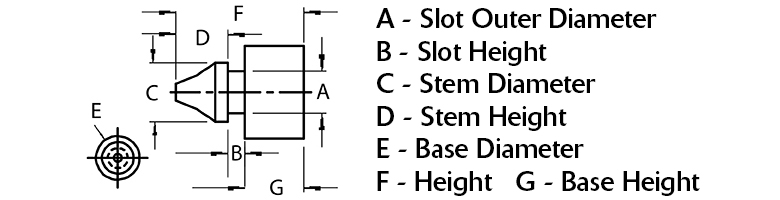

ABCDEFG
8-5PB0.080.060.1250.070.1250.170.4Download PDF
6-1PB0.1150.040.190.050.190.140.05Download PDF
8-2PB0.1250.0620.1870.1090.3120.2180.047Download PDF
10-12PB0.1560.0620.2180.1570.3440.4370.218Download PDF
10-13PB0.1560.0620.2180.220.3440.4690.187Download PDF
10-8PB0.160.0840.220.3060.220.510.12Download PDF
12-3PB0.1870.1250.250.3130.50.50.062Download PDF
12-4PB0.1870.0620.2340.2820.3120.4690.125Download PDF
16-60.1870.1090.3120.2030.4370.4370.125Download PDF
16-200.1870.0310.3440.2820.4370.6250.312Download PDF
16-20.250.0470.3130.0620.3750.2340.125Download PDF
35PB0.2180.0940.2810.0940.4060.3750.187Download PDF
14-10PB0.2180.1250.3440.4840.8750.7810.172Download PDF
15A20.2340.0470.2970.1560.4370.250.062Download PDF
15A30.2340.0470.2970.1560.4370.2970.094Download PDF
15A40.2340.0470.2970.1560.4370.3280.125Download PDF
5-24PB0.250.0620.3440.1560.5310.3430.125Download PDF
5-26PB0.250.0620.3440.1560.5310.4050.187Download PDF
5-32PB0.250.0940.3440.1560.5310.3120.062Download PDF
5-34PB0.250.0940.3440.1560.5310.3750.125Download PDF
5-36PB0.250.0940.3440.1560.5310.4370.187Download PDF
5-311PB0.250.0940.3440.1560.5310.5940.344Download PDF
5-42PB0.250.1250.3440.1560.5310.3430.062Download PDF
5-44PB0.250.1250.3440.1560.5310.4060.125Download PDF
5-46PB0.250.1250.3440.1560.5310.4680.187Download PDF
5-64PB0.250.1870.3440.1560.5310.4680.125Download PDF
5-66PB0.250.1870.3440.1560.5310.530.187Download PDF
16-30.250.0620.3120.0630.3750.1870.125Download PDF
14-20.250.0310.3120.0940.3750.1870.062Download PDF
16-40.250.0310.3120.0930.3750.2810.125Download PDF
25-50.250.0470.3750.1410.50.3440.156Download PDF
25-100.250.0470.3750.140.50.4370.25Download PDF
540.250.0620.3440.2670.6250.6410.312Download PDF
550.250.0620.3440.2660.50.6870.359Download PDF
16-240.250.0310.3440.2810.5620.6870.375Download PDF
16-260.250.0310.3440.2810.5620.7180.406Download PDF
17-20.270.080.3750.170.5620.5310.281Download PDF
16-860.3120.0940.4370.140.6250.3590.125Download PDF
20-280.3120.0460.4370.0780.8750.2180.094Download PDF
20-120.3120.0470.50.360.750.5940.187Download PDF
28-120.4370.0460.3120.360.750.5930.187Download PDF
30-80.4690.0310.6250.1251.0620.2810.125Download PDF
33-80.5160.0620.6870.3130.8120.50.125Download PDF
40-80.750.0310.8750.1251.0620.2810.125Download PDF
80-31.250.0461.4370.111.4370.2660.125Download PDF

Screw Rubber Bumpers

Part NumberBumper TypeOuter DiameterHeightScrew HeightBumper HeightScrew SizeSpec Sheet

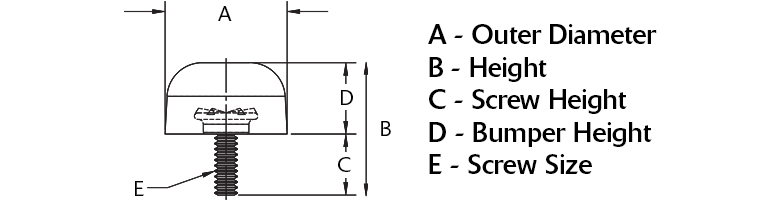

ABCDE
3/4 MSBScrew0.750.8120.3750.4378-32MSDownload PDF
1 MSBScrew10.8750.3750.510-24MSDownload PDF
150 MSBScrew1.381.881.250.635/16-18UNCDownload PDF
500MSBScrew0.50.50.250.256-32MSDownload PDF

Bar Pattern Rubber Bumpers

Part NumberLengthWidthHeightHole DiameterCountersink DiameterSpec Sheet

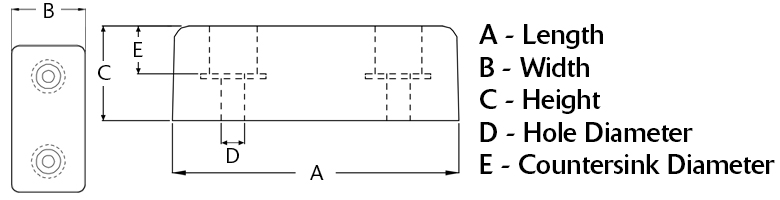

ABCDE
TB16.0623.06220.51Download PDF
1152P2.50.50.50.1150.217Download PDF
